PUMPS
LPG pumps
LPG pumps series "KALVACHA AR and RR" are designed and constructed for facilitating the transport and operation of facilities for liquefied petroleum gases (propane, butane or mixtures thereof) and fluids with similar parameters (viscosity). The wide product range enables high efficiency of operation. Our pumps are designed in accordance with European Directive 94/9/ES - "Equipment and protective systems intended for use in potentially explosive atmospheres".

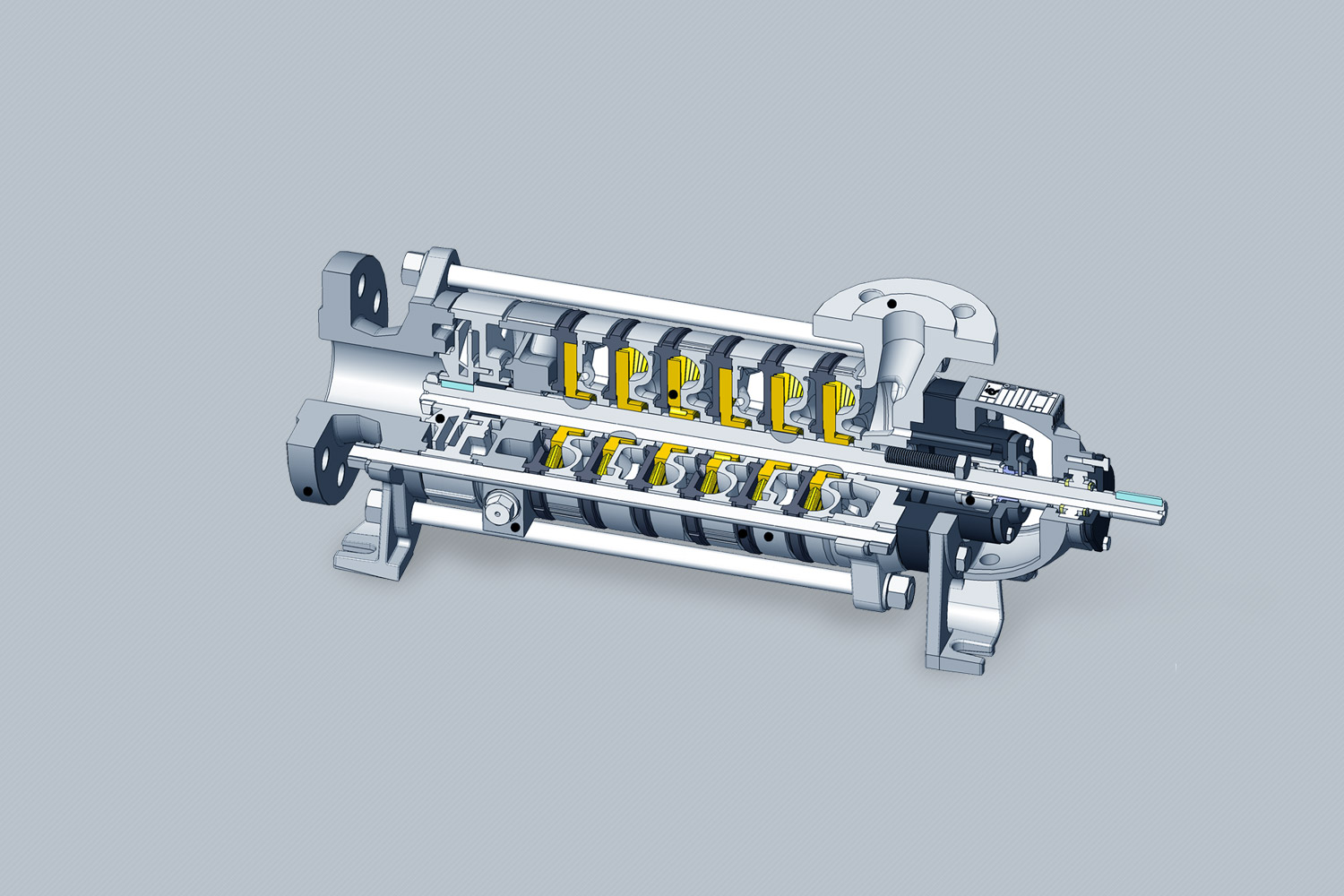

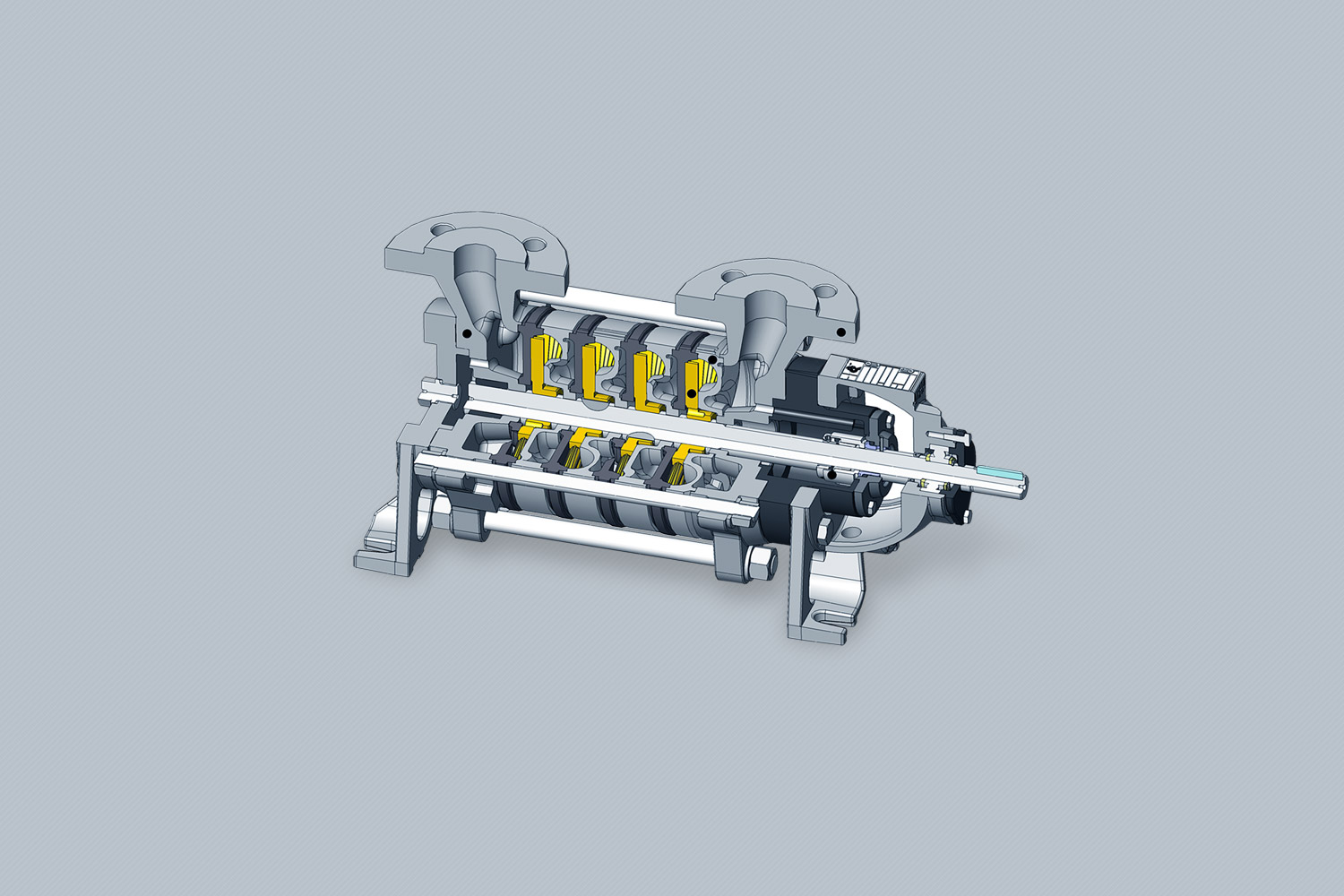

Construction
The design of the device is sufficiently compact, allowing installation in different placements and configurations, below or above tank levels. We target absolute applicability and client satisfaction, which includes coupling of the pumps with various motors for required flow and pressure rate. LPG Pump series are intended to cover the full range of industrial and domestic gas supply needs.
Technical data
| Pump type | Flow rate (l/min) | Pressure (Bars) |
| AR2 1/1 | 35 | 3 |
| AR2 1/2 | 50 | 5 |
| AR2 1/3 | 70 | 7 |
| AR2 1/4 | 80 | 9 |
| AR2 1/5 | 95 | 11 |
| AR2 2/6 | 120 | 13 |
| AR2 1/7 | 135 | 15 |
| AR2 1/8 | 150 | 17 |
| Pump type | Flow rate (l/min) | Pressure (Bars) |
| RR2 1/2 | 50 | 5 |
| RR2 1/3 | 70 | 7 |
| RR2 1/4 | 80 | 9 |
| RR2 1/5 | 95 | 11 |
